| رابط کاربری | 48 پورت شبکه 10/100 2 پورت گیگابیتی 2 پورت ترکیبی SFP |
|---|---|
| VLAN | VLAN Group Max. 4K Static VLAN Group Max. 4K Dynamic VLAN Groups 802.1Q Tagged VLAN GVRP (Double VLAN (Q-in-Q 802.1v Protocol VLAN |
| نوع پورت آپلینک | Copper/SFP Gigabit combo, Gigabit Ethernet, SFP Gigabit |
| نوع پورت | Fast Ethernet |
| PoE | None PoE |
| تعداد پورت | 48 پورت و بالاتر |
| محل استفاده | Rackmount |
| برند | D-link |
| Management | Web-Based GUI (Command Line Interface (CLI Telnet Server/Client TFTP Client SNMP v1, v2c, v3 SNMP Trap RMON v1 RMON v2 BootP/DHCP Client DHCP Auto-configuration DHCP Relay Option 82 DHCP Server System Log Dual Image Dual Configuration CPU Monitoring SNTP |
| Security | SSH v1.5/v2 SSL v2/v3 Port Security up to 16 MAC Addresses per port Broadcast/Multicast/Unicast Storm Control Traffic Segmentation IP-MAC-Port Binding D-Link Safeguard Engine D-Link ZoneDefense |
| ACL | Up to 800 Access Rules ACL Based on Port MAC Address 802.1p Priority VLAN ID DSCP IPv4/v6 Address TCP/UDP Port Number Protocol Type User Defined Packet Content CPU Interface Filtering |
| QoS | :Bandwidth Control ( Port Based (Ingress/Egress, Min. Granularity 64Kbps (Flow Based(Ingress/Egress, Min. Granularity 64Kbps 802.1p Class of Service 8Queues Queue Handling Strict (Weighted Round Robin (WRR Strict + WRR CoS Based on Switch Port MAC Address TOS DSCP IP Address TCP/UDP Port |
| Multicast | IGMP v1, v2, v3 DVMRP v3 PIM-DM PIM-SM PIM Sparse-Dense Mode |
| قابلیت های مدیریتی لایه 3 | 128Static Routing Entries RIP v1/v2 OSPF Support OSPF v2 OSPF Passive Interface Web-Based GUI OSPF Equal Cost Route 2K Hardware Routing Entries 4K Hardware L3 Forwarding Entries VRRP 64IP Interfaces ARP Proxy |
| L2 Features | MAC Address Table: 16K Flow Control 802.3x Flow Control HOL Blocking Prevention Jumbo Frame up to 9K Bytes IGMP Snooping IGMP v1/v2/v3 Snooping Support 256 Groups Host-based IGMP Snooping Fast Leave Spanning Tree 802.1D STP 802.1w RSTP 802.1s MSTP Per port / per device BPDU Filtering 802.3ad Link Aggregation Max. 32 Groups per device / 8 Ports Per Group Port Mirroring One-to-One Many-to-One Flow-based Mirroring MLD Snooping MLD v1/v2 Snooping Loopback Detection |
| ویژگی های پورت | Auto-Negotiation of Network Speeds RS-232 Console Port |
| Stackability | Virtual Stacking Support D-Link Single IP Management Up to 32 Devices per Virtual Stack |
| MTBF | 168,110Hours |
| وزن | 6.02kg |
| سایز و ابعاد | رک 16 اینچی 441x 369 x 44 mm |
| نشانگر LED | (10Mbps or 100Mbps Speed (Per Ethernet Port (10/100Mbps or 1000Mbps Speed (Per Gigabit Port (Link/Activity (Per Port (Power, Console, RPS (Per Device |
| Max. Jumbo Frame Size | 9KBytes |
| Packet Buffer Size | 32MB |
| 64-Byte System Packet Forwarding Rate | 11.7mpps |
| ظرفیت سوییچ | 17.6Gbps |
| مصرف انرژی | (47watts (max |
| منبع تغذیه | 100to 240VAC, 10A, 50 to 60Hz |
تجهیزات شبکه, سوییچ, قابل مدیریت

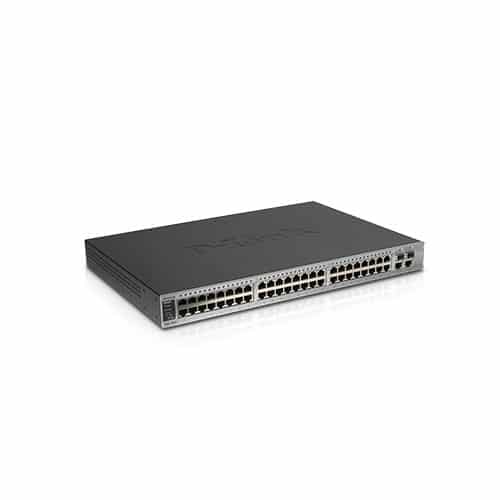

سوییچ لایه ۳ مدل DES-3852 دی-لینک
- توابع لایه2 و لایه 3
- 3 راه حل متنوع برای تامین برق
- پشتیبانی از سرویس خدمات چندلایه
