| رابط های کاربری | 52 پورت 10/100Base-TX PoE 2 پورت 100/1000SFP 2 پورت Combo 10/100/1000 BASE-T/ 100/1000 SFP |
|---|---|
| L2 Multicasting | :IGMP Snooping IGMP v1/v2 snooping, v3 awareness- Supports 1024 Groups- Port/Host-based IGMP snooping Fast Leave- Report Suppression- :MLD Snooping MLD v1, MLD v2 awareness- Support 1 K groups- Host-based MLD snooping- Fast Leave- IGMP Authentication IGMP/MLD Proxy Reporting |
| نوع پورت آپلینک | Copper/SFP Gigabit combo, Gigabit Ethernet, SFP Gigabit |
| نوع پورت | Fast Ethernet |
| PoE | None PoE |
| تعداد پورت | 48 پورت و بالاتر |
| محل استفاده | Rackmount |
| برند | D-link |
| مدیریت | (Web-based GUI (IPv4) ( Command Line Interface (CLI) (Telnet Server/ Client (IPv4) (TFTP Client (IPv4) (FTP Client (IPv4) Zmodem Command Logging SNMP v1/v2c/v3 SNMP Traps System Log :RMON v1 Supports 1,2,3,9 Groups- :RMON v2 Supports ProbeConfig Group- LLDP 802.1AB LLDP-MED BootP/DHCP Client DHCP Auto-Configuration (DHCP Relay (IPv4 DHCP Relay Option 12 DHCP Relay Option 82 PPPoE Circult-ID Tag Insertion Flash File System SNTP CPU Monitoring Memory Monitoring Debug Command Password Encryption Password Recovery Microsoft® NLB (Network Load Balancing) Support (Ping (IPv4/v61 Traceroute Multiple IP Interface |
| امنیت | SSH v1, v2 SSL v1, v2, v3 Port Security Up to 64 MAC addresses per port Broadcast/Multicast/Unicast Storm Control Traffic Segmentation :IP-MAC-Port Binding ARP Inspection- IP Inspection- DHCP Snooping- D-Link Safeguard Engine DHCP Server Screening DHCP Client Filtering ARP Spoofing Prevention BPDU Attack Protection NetBIOS/NetBEUI Filtering DoS Attack Prevention L3 Control Packet Filtering |
| (Access Control List (ACL | Up to 1024 ingress access rules- :ACL Based on Switch Port- 802.1p Priority- VLAN ID- Ether Type- IPv4/v6 address- DSCP- Protocol Type- TCP/UDP Port Number- IPv6 Traffic Class- IPv6 Flow Label- User-Defined Packet Content- Time-based ACL- ACL statistics- CPU interface filtering- |
| (Quality of Service (QoS | :Bandwidth Control (Port-based (Ingress/Egress, Min. Granularity 8 Kbps) (Flow-based (Ingress/Egress, Min. Granularity 8 Kbps) (Per egress queue bandwidth control (Min Granularity 8 Kbps 8 Queues per Port DSCP 802.1p :Queue Handling Strict Priority- (Weighted Round Robin (WRR- Strict + WRR :Three Color Marker trTCM- srTCM- |
| ویژگی های L3 | (IPv6 Neighbor Discovery (ND |
| VLAN | 802.1Q Tagged VLAN : VLAN Group Max. 4K VLAN Port-based VLAN MAC-based VLAN GVRP 802.1v Protocol VLAN VLAN Trunking :(Double VLAN (Q-in-Q Port-based Q-in-Q- Selective Q-in-Q- ISM VLAN VLAN Translation Voice VLAN |
| ویژگی های L2 | MAC address table: 16K :Flow Control 802.3x Flow Control- HOL Blocking Prevention- Jumbo Frame up to 12K bytes Spanning Tree Protocols BPDU Filtering Root Restriction Loopback Detection :Link Aggregation Complies with 802.1AX and 802.3ad- DES-3200-52/52-DC/52P: Max. 26 groups, 8 ports per group- :Port Mirroring Supports 1 Mirroring group- (Supports One-to-One, Many-to-One, Flow-based (ACL mirroring- (Ethernet Ring Protection Switching (ERPS- (L2 Protocol Tunneling (L2PT- |
| پورت کنسول | RJ-45 |
| Stackability | Virtual Stacking D-Link Single IP Management Up to 32 units per Virtual Stack |
| سیستم تهویه | فن هوشمند |
| سایز | 19inch Standard Rackmount Width, 1U Height |
| سرج پروتکشن | All Ethernet ports support IEC61000-4-5 10/700us 6 KV surge protection |
| منبع تغذیه | AC Input: 100 – 240 V AC, 50-60 Hz |
| MTBF | 440,074hours |
| نشانگر LED | (Power (Per Device (Console (Per Device (Link/Active/Speed (Per Port |
| Jumbo Frame | 12KB |
| Flash Memory | 32MB |
| Packet Buffer | 1.5MB |
| SDRAM for CPU | 128M DDR2 |
| سایز جدول MAC Address | 16K Entries |
| ظرفیت سوییچ | 17.6Gbps |
تجهیزات شبکه, سوییچ, سوییچ های مدیریتی لایه 2, قابل مدیریت

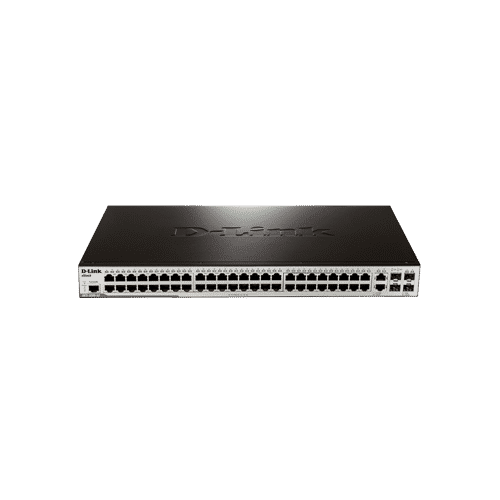

سوییچ مدیریتی لایه ۲ مدل DES-3200-52 دی-لینک
- دارای 48 پورت 10/100Mbps
- دارای دو پورت گیگابیتی SFP
- دارای دو پورت ترکیبی 10/100/1000BASE-T/100/1000 SFP
- پشتیبانی از طیف وسیعی از توابع مدیریتی ،L2،و ویژگی های IPv6
