| سایز | 11-inch Desktop/Rackmount Size, 1U Height |
|---|---|
| Storage Temperature | -10 تا 70C |
| نوع پورت | Fast Ethernet |
| PoE | None PoE |
| تعداد پورت | 16 پورت و کمتر |
| محل استفاده | Desktop, Rackmount |
| برند | D-link |
| مدیریت | (Web-based GUI (Supports IPv4 SmartConsole Utility Password Access Control Port Setting: Set Speed, Duplex mode, Flow control Configuration File Backup/Restore via HTTP Firmware File Upgrade via HTTP |
| امنیت | (Static MAC (Max 128 Static MAC entries Broadcast/Multicast/Unknown Unicast Storm Control |
| QoS | :Bandwidth Control- (Port-based (Ingress/Egress Granularity is predefined as: 512 kbps/1024 kbps/2048 kbps/4096 kbps/8192 kbps/16384 kbps/32768 kbps/65536 kbps 2queues per port- 802.1p- :Queue Handling- Strict Priority (Weighted Round Robin (WRR |
| ویژگی های لایه 2 ای | MAC Address Table: 8k- IGMP Snooping- Static Trunk- 10/100 ports: max. 2 groups per device and 2-4 ports per group Flow Control- (Loopback Detection (LBD- Port Mirroring- Supports One-to-One or Many-to-One Supports TX, RX, and both Statistics – supports 4 groups- Transmit packet & collision Receive packet & Transmit packet Receive packet & Drop packet Receive packet & CRC packet |
| VLAN | 802.1Q Tagged VLAN- -VLAN Group- DES-1100-16/24: 32 static VLAN groups Configures VID from 1-4094 Port-based VLAN- |
| Safety | UL/cUL, LVD |
| EMI | FCC Class A, CE Class A, VCCI Class A, CCC, IC, C-Tick |
| Storage Humidity | 5%to95% non-condensing |
| Operating Humidity | 10%to95% non-condensing |
| Operating Temperature | 0 تا 40C |
| پورت | 16 پورت 10/100Mbps |
| Ventilation | Fanless |
| ابعاد | 280mm*125mm*44mm |
| وزن | 1.0kg |
| Heat Dissipation | 20.34BTU/hr |
| MTBF | 597,779hours |
| منبع نغذیه | 100 to 240 V AC 50 to 60 Hz Internal Universal Power Supply |
| Power Consumption | Standby Mode :5.96 watts Maximum : 2.67 watts |
| نشانگر LED | (Power (per device (Link/Activity/Speed (per port |
| Flash Memory | 1MB |
| Packet Buffer | 1.75Mbits |
| جدول MAC Address | 8K |
| Maximum Forwarding Rate | 2.38Mpps |
| ظرفیت سوییچ | 3.2Gbps |
| ویژگی های پورت | IEEE 802.3 compliant IEEE 802.3u compliant Supports half/full-duplex operation Auto-negotiation Auto MDI/MDIX IEEE 802.3x Flow Control supports Full-Duplex mode |
| نوع پورت آپلینک | N/A |
اسمارت, تجهیزات شبکه, سوییچ

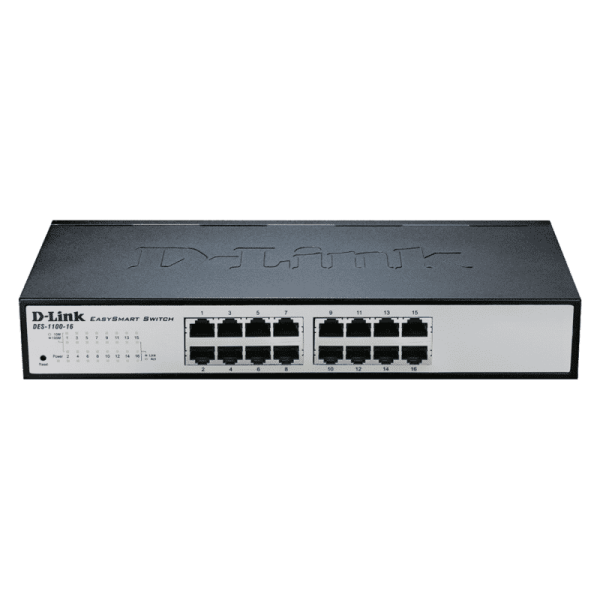

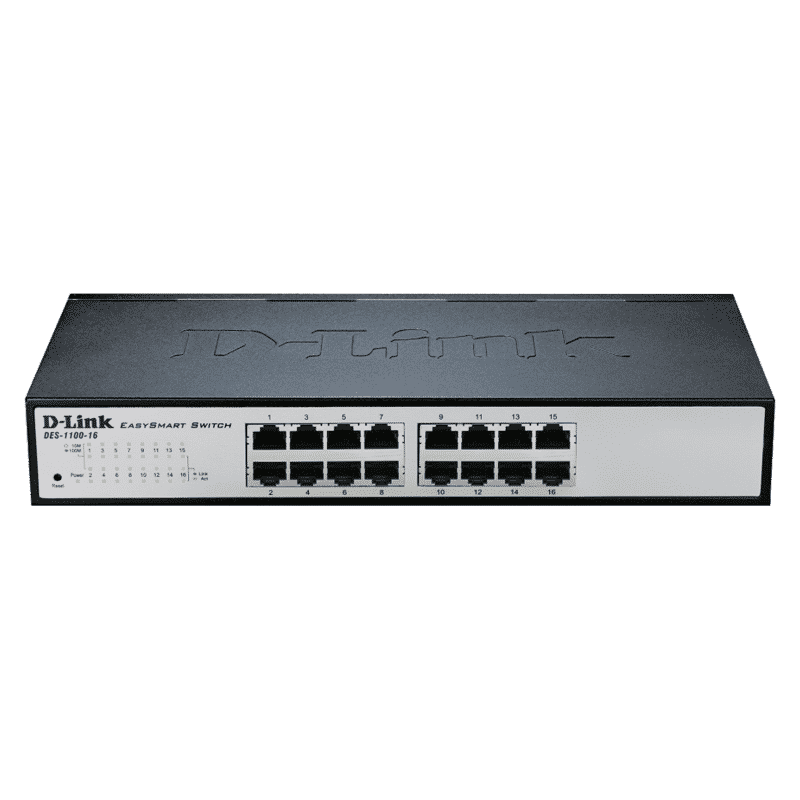

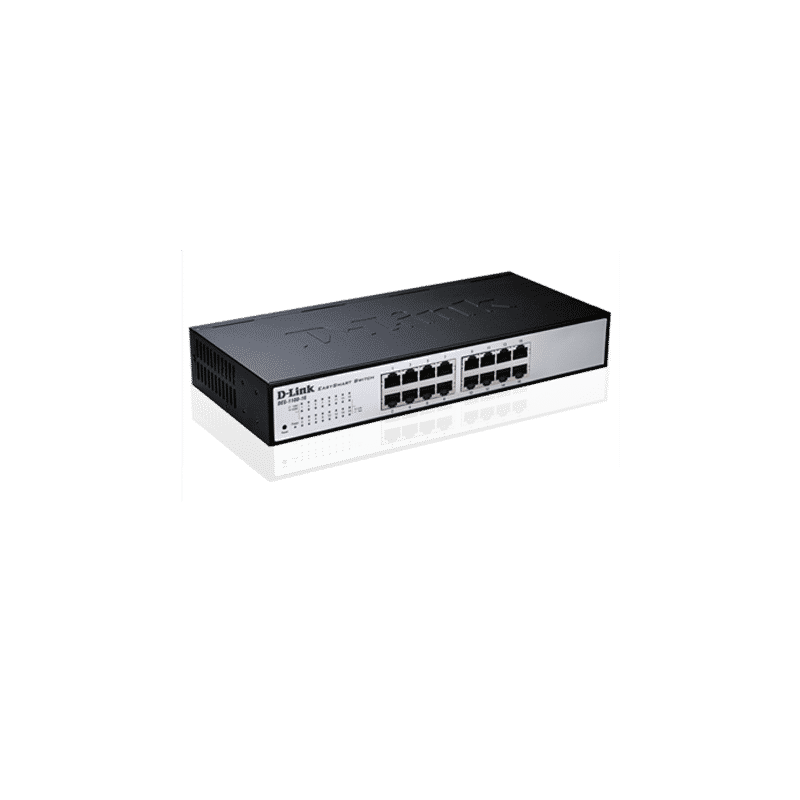

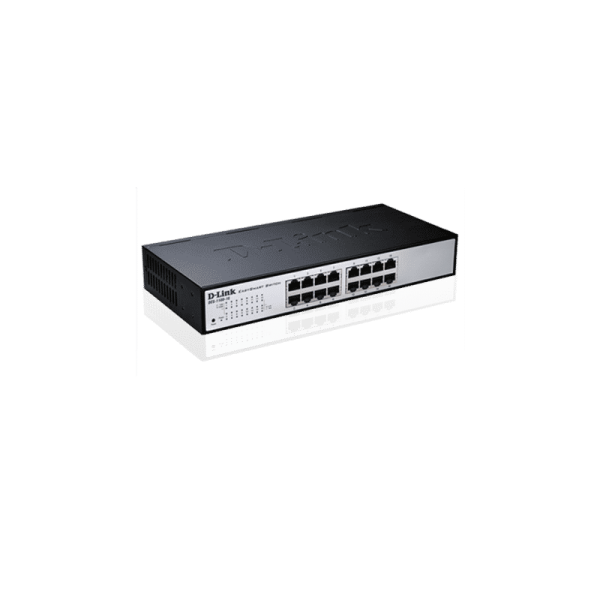

سوییچ هوشمند ۱۶ پورت مدل DES-1100-16 دی-لینک
- دارای 16 پورت شبکه با سرعت 10/100Mbps
- امکانات مدیریتی قدرتمند سوییچ از طریق مرورگر وب
- پشتیبانی از SmartConsole
- پشتیبانی از VLAN و QoS
