| سایز | 19inch 1U Rack-mount Size |
|---|---|
| Storage Temperature | -10 تا 70C |
| نوع پورت | Fast Ethernet |
| PoE | None PoE |
| تعداد پورت | 18 تا 28 پورت |
| محل استفاده | Rackmount |
| برند | D-link |
| مدیریت | (Web-based GUI (Supports IPv4 SmartConsole Utility Password Access Control Port Setting: Set Speed, Duplex mode, Flow control Configuration File Backup/Restore via HTTP Firmware File Upgrade via HTTP |
| امنیت | (Static MAC (Max 128 Static MAC entries Broadcast/Multicast/Unknown Unicast Storm Control |
| QoS | :Bandwidth Control- (Port-based (Ingress/Egress Granularity is predefined as: 512 kbps/1024 kbps/2048 kbps/4096 kbps/8192 kbps/16384 kbps/32768 kbps/65536 kbps 2queues per port- 802.1p- :Queue Handling- Strict Priority (Weighted Round Robin (WRR |
| ویژگی های لایه 2 ای | MAC Address Table: 8k- IGMP Snooping- Static Trunk- 10/100 ports: max. 2 groups per device and 2-4 ports per group Flow Control- (Loopback Detection (LBD- Port Mirroring- Supports One-to-One or Many-to-One Supports TX, RX, and both Statistics – supports 4 groups- Transmit packet & collision Receive packet & Transmit packet Receive packet & Drop packet Receive packet & CRC packet |
| VLAN | 802.1Q Tagged VLAN- -VLAN Group- DES-1100-16/24: 32 static VLAN groups Configures VID from 1-4094 Port-based VLAN- |
| Safety | UL/cUL, LVD |
| EMI | FCC Class A, CE Class A, VCCI Class A, CCC, IC, C-Tick |
| Storage Humidity | 5%to95% non-condensing |
| Operating Humidity | 10%to95% non-condensing |
| Operating Temperature | 0 تا 40C |
| پورت | 24 پورت 10/100Mbps 2 پورت Combo of 10/100/1000BASE-T and Gigabit SFP |
| Ventilation | Fanless |
| ابعاد | 440mm*140mm*44mm |
| وزن | 1.9kg |
| Heat Dissipation | 54.46BTU/hr |
| MTBF | 490,797hours |
| منبع نغذیه | 100 to 240 V AC 50 to 60 Hz Internal Universal Power Supply |
| Power Consumption | Standby Mode :4.17 watts Maximum :15.96 watts |
| نشانگر LED | (Power (per device (Link/Activity/Speed (per port |
| Flash Memory | 1MB |
| Packet Buffer | 2.75Mbits |
| جدول MAC Address | 4K |
| Maximum Forwarding Rate | 6.54Mpps |
| ظرفیت سوییچ | 8.8Gbps |
| ویژگی های پورت | IEEE 802.3 compliant IEEE 802.3u compliant IEEE 802.3ab compliant Supports half/full-duplex operation Auto-negotiation Auto MDI/MDIX IEEE 802.3x Flow Control supports Full-Duplex mode, back pressure when in Half-Duplex mode, and Head-of-line blocking prevention IEEE 802.3z compliant |
| نوع پورت آپلینک | Copper/Gigabit Fiber combo, Gigabit Ethernet, Gigabit Fiber |
اسمارت, تجهیزات شبکه, سوییچ

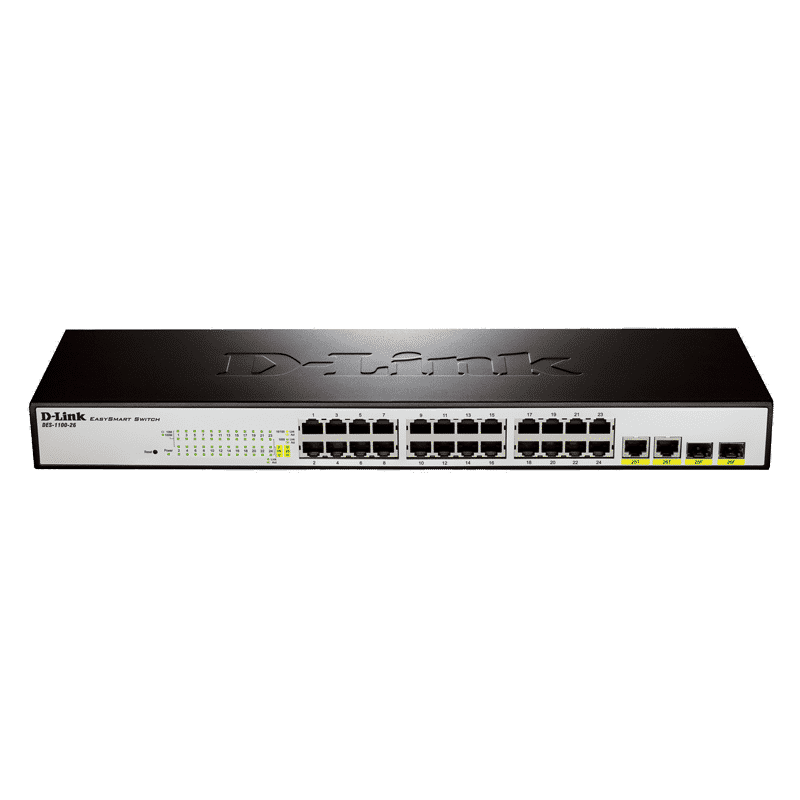

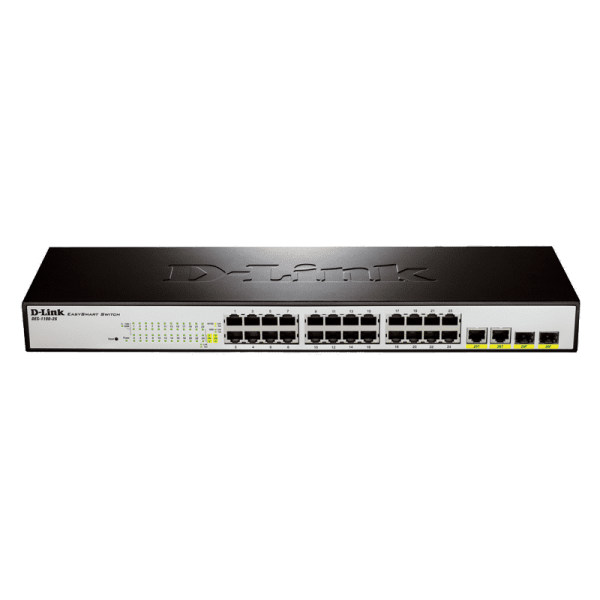

سوییچ هوشمند ۲۶ پورت مدل DES-1100-26 دی-لینک
- دارای 24 پورت 10/100Mbps
- دارای 2 پورت 10/100/1000Base-T/SFP ،Combo
- طراحی بدون فن و بدون صدا
- قابلیت نصب در رک
