| Copper Ports | 8port 10/100/1000Base-T RJ-45 Auto-MDI/MDI-X |
|---|---|
| Storage Humidity | 5%-90% |
| Link Aggregation | IEEE 802.3ad LACP / Static Trunk Supports 5 groups of 10-Port trunk support |
| QoS | Traffic classification based, Strict priority and WRR 8-Level priority for switching Port Number 802.1p priority 802.1Q VLAN tag DSCP/TOS field in IP Packet |
| IGMP Snooping | IGMP (v1/v2) Snooping, up to 200 multicast Groups IGMP Querier mode support |
| Regulation Compliance | FCC,CE,RoHS |
| Operating Temperature | ℃0-℃ 40 |
| Operating Humidity | 10%-90% non-condensing |
| Basic Management Interfaces | Port disable / enable Auto-Negotiation 10/100/1000Mbps full and half duplex mode selection Flow Control disable / enable Bandwidth control on each port Power saving mode control |
| Port Status | Display each port’s speed duplex mode, link status, Flow control status,Auto negotiation status, trunk status |
| برند | IP-COM |
| محل استفاده | Desktop, Rackmount |
| تعداد پورت | 16 پورت و کمتر |
| PoE | 802.11af, 802.11at |
| نوع پورت | Gigabit Ethernet |
| نوع پورت آپلینک | Gigabit Fiber |
| Port Mirroring | TX / RX / Both Many to 1 monitor |
| VLAN | 802.1Q Tagged Based VLAN, up to 64 VLAN groups Q-in-Q tunneling Private VLAN Edge (PVE) MAC-Based VLAN Protocol-Based VLAN Voice VLAN Up to 10 VLAN groups, out of 160 VLAN IDs |
| Storage Temperature | ℃70-℃ 40- |
| Weight | 1.8kg |
| Dimension | 1U high L*W*H)294*178.8*44 ) |
| Throughout | 14.88Mpps |
| Address Table | 8K entries, automatic source address learning and aging |
| Share Data Buffer | 1.49Mpps |
| Flow Contro | IEEE 802.3x Pause Frame for Full-Duplex Back pressure for Half-Duplex |
| Jumbo Frame | 9Kbytes |
| Reset Button | 5seconds: System reboot> 5seconds: Factory Default< |
| PoE Ability | Number of PD @ 7 Watts 8 Number of PD @ 15.4 Watts 8 Number of PD @ 30.8 Watts 4 |
| نشانگرها | Power,PoE-Max Link/Act per Gigabit port PoE In-Use for Port-1~ 8 |
| SFP/mini-GBIC Slots | (2port 1000Base-SX/LX/BX SFP interfaces (Port-9 and Port-10 Compatible with 100Base-FX SFP |
| Power Supply | 130W |
| PoE Standard | IEEE 802.3af / at |
| PoE Power Supply Type | End-Span |
| PoE Power Output | Per Port 51V DC Max. 40 Watts |
| Power Pin Assignment | (-)3/6,(+)1/2 |
| PoE Power Budget | 115W |
| Switch Architecture | Store-and-Forward |
تجهیزات شبکه, سوییچ, قابل مدیریت

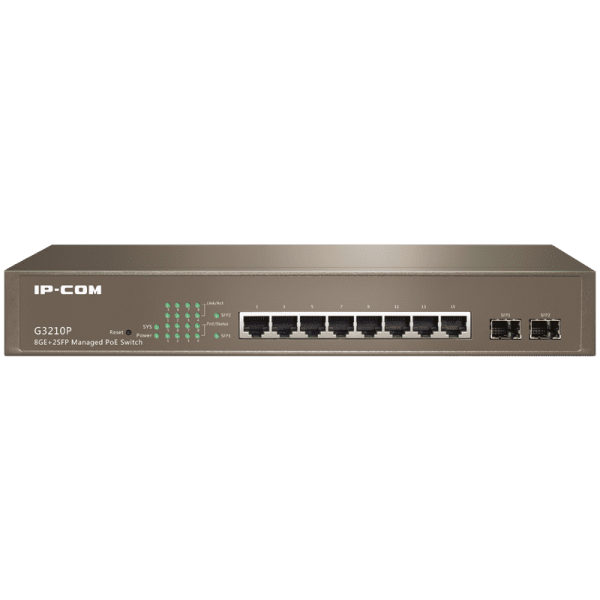

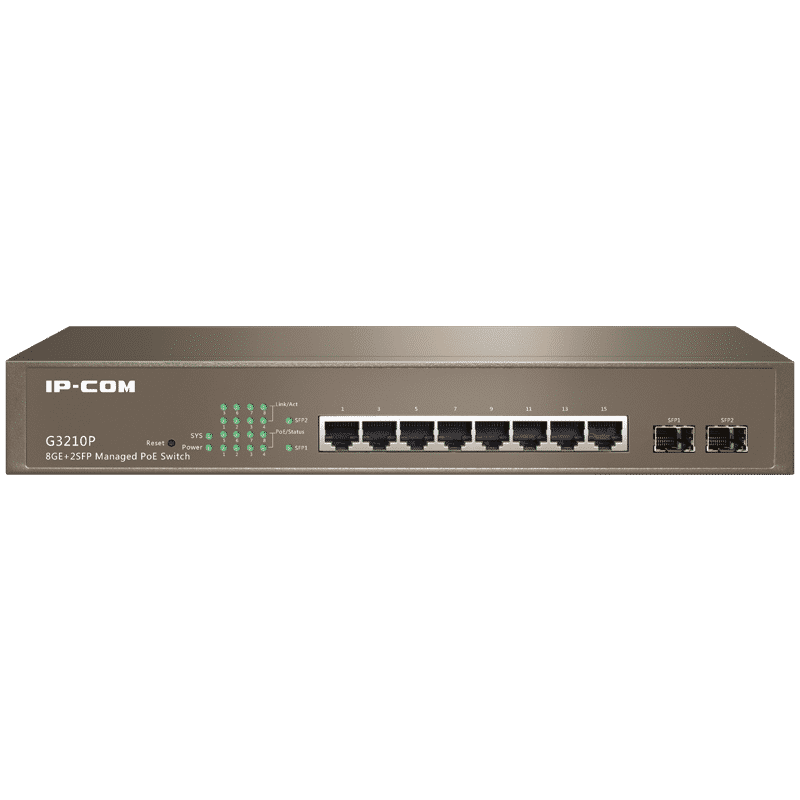

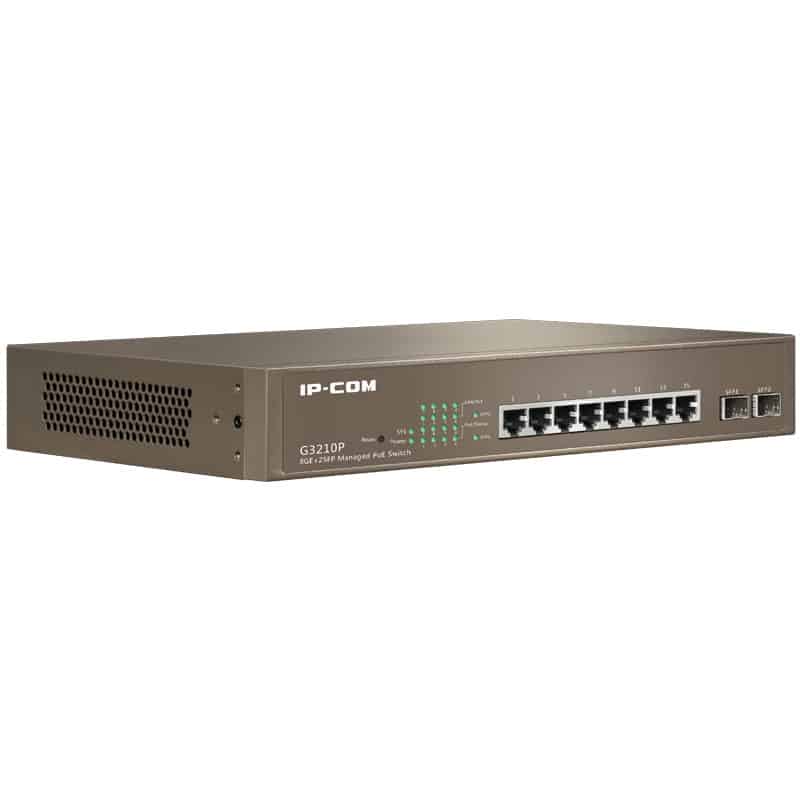

سوییچ ۸ پورت گیگابیتی G3210P آی پی کام
- سوئیچ مدیریتی
- 2 پورت SFP
- 8 پورت اترنت گیگابیتی
- 8 پورت PoE
- استاندارد PoE ،EEE802.at /af
- انرژی خروجی هر پورت 40w
- توان115W
- پشتیبانی از VLAN
