| Standard and protocol supported | IEEE 802.3、 IEEE 802.3u、IEEE 802.3z、IEEE 802.3ab、IEEE 802.3x、IEEE 802.1D、IEEE 802.1W、IEEE 802.1Q、IEEE 802.3af、IEEE 802.3at |
|---|---|
| نوع پورت | Fast Ethernet |
| PoE | 802.11af, 802.11at |
| تعداد پورت | 18 تا 28 پورت |
| محل استفاده | Rackmount |
| برند | IP-COM |
| Certification | FCC/CE/RoHS |
| Layer 2 ring network protocol | Support STP/RSTP and looped Network for devices |
| QoS | Support message transmission for ports and limitation of speed Support SP & WRR |
| Link aggregation | Support LACP, manual link aggregation Support up to 6 link aggregation groups and up to 8 GE ports per group |
| Mirroring | Support local mirror image |
| VLAN | Support VLAN(4K) based on ports Support 802.1QVLAN |
| PoE management | Support setup of PoE Support power adjustable by priority Support over temperature protection for PoE module |
| (Relative humidity(Operational | 10%-95% (noncondensing） |
| MTBF | 100,000hours |
| Storage Temperature | 40c-70c |
| perating temperature | 0c-40c |
| Total power consumption | 150> WPoE consumption up to 130W |
| Weight | 5kg>= |
| Dimension | 293mm*178.8mm*44mm |
| Voltage input range | AC：100－240V～ 50/60Hz |
| PoE through pin | 1,2,4,5 + 3,6,7,8, – |
| Power supply module | (Providing 8 ports under IEEE 802.3af(15.4W) or 4 ports under IEEE 802.3at(30W |
| MAC address entries | 4K MAC |
| Exchange capacity | 5.6Gbit/s |
| Store and forward | Yes |
| lightning protection | 6KV=< |
| Fixed Ports | 8port 10/100Base-TX 2port 10/100/1000Base-T (2port 1000Base-X SFP (Combo |
| Indicator LEDs | Link/Act, PoE Status,System, Power,PoE Max |
| نوع پورت آپلینک | Copper/Gigabit Fiber combo, Gigabit Ethernet, Gigabit Fiber |
اسمارت, تجهیزات شبکه, سوییچ

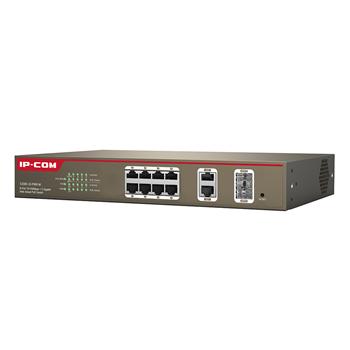

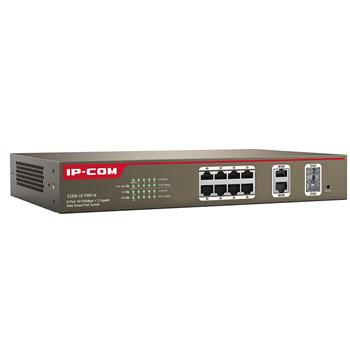

سوییچ ۸ پورت (S3300-10-PWR-M(F1210P آی پی کام
- سوئیچ Web Smart
- 8 پورت 10/100Mbps
- ۲ پورت 10/100/1000Mbps
- 8 پورت POE
- استاندارد IEEE 802.3af/at
- 2 پورت (SFP (combo
- توان 125W
