| رابط های کاربری | 48 پورت گیگابیتی PoE 4 پورت SFP |
|---|---|
| AAA | 802.1X Authentication IPv6 RADIUS Server Support MD5 authentication |
| گواهینامه | CE Class A VCCI Class A FCC Class A BSMI CCC C-Tick cUL (CE (LVD |
| MTBF | 318,616hours |
| ویژگی های لایه 2 ای | IGMP Snooping IGMP v1/v2 Snooping Supports 256 IGMP groups Supports at least 64 static multicast addresses IGMP per VLAN Supports IGMP Snooping Querier Loopback Detection :802.3ad Link Aggregation Maximum of 26 groups/8 ports per group LLDP LLDP-MED Jumbo Frame Up to 9,216 bytes Spanning Tree Protocol 802.1D STP 802.1w RSTP Flow Control 802.3x Flow Control HOL Blocking Prevention Port Mirroring One-to-One Many-to-One Supports Mirroring for Tx/Rx/Both Multicast Filtering Forwards all unregistered groups Filters all unregistered groups Configurable MDI/MDIX (MLD snooping v1/v2 (256 groups |
| VLAN | 802.1Q VLAN Group Max. 256 static VLAN groups Configurable VID from 1 – 4094 Asymmetric VLAN Auto Voice VLAN Max. 10 user-defined OUI Max. 8 default OUI Auto Surveillance VLAN |
| QoS | Max. 50 access list Max. 768 rules shared by IPv4, MAC and IPv6 Each rule can only be associated with a single port ACL based on 802.1p priority VLAN MAC address Ether type IP address DSCP Protocol type TCP/UDP port number IPv6 Traffic Class |
| امنیت | Broadcast/Multicast/Unicast Storm Control D-Link Safeguard Engine DHCP Server Screening (IP-MAC-Port Binding (Smart Binding Supports 512 address binding entries ARP Inspection ARP + IP Inspection Supports DHCP Snooping 802.1X Port-based Access Control ARP Spoofing Prevention Max. 64 entries Traffic Segmentation SSH v2 SSL Supports v1/v2/v3 Port Security Supports up to 64 MAC addresses per port Duplicate address detection |
| مدیریت | Web-based GUI D-Link Network Assistant Utility Compact CLI Telnet Server TFTP Client Configurable MDI/MDIX SNMP Supports v1/v2c/v3 SNMP Trap Backup/Upgrade firmware Smart Wizard Upload/Download Configuration file System Log Max. 500 log entries BootP/DHCP Client SNTP ICMP v6 IPv4/v6 Dual Stack DHCP Auto Configuration Time Setting SNTP RMONv1 Trusted Host |
| وزن | 5.78kg |
| Green Technology | Link Status Time-based PoE: PoE ports can be turned on/off by port or system through schedule LED Shutoff System Hibernation Port Shutoff |
| برند | D-link |
| محل استفاده | Rackmount |
| تعداد پورت | 48 پورت و بالاتر |
| PoE | 802.11af, 802.11at |
| نوع پورت | Gigabit Fiber |
| نشانگر LED | (Link/Activity/Speed (Per 10/100/1000 Mbps port |
| ابعاد | 440mm*430mm*44mm |
| پورت های PoE | Ports 1~8 compliant with 802.3at Ports 9~48 compliant with 802.3af |
| MAC Address Update | Up to 256 static MAC entries |
| ویژگی ها و استانداردهای پورت | (IEEE 802.3 10BASE-T Ethernet (twisted-pair copper (IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper (IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted- pair copper IEEE 802.3az compliance Auto-negotiation IEEE 802.3x Flow Control IEEE802.3, IEEE802.3u, IEEE802.3ab IEEE802.3az IEEE802.3z |
| Full/Half-Duplex | Full/half duplex for 10/100 Mbps speeds Full duplex for Gigabit speed |
| Media Interface Exchange | Auto MDI/MDIX adjustment for all twisted-pair ports |
| ظرفیت سوییچ | 104Gbps |
| Transmission Method | Store-and-forward |
| جدول MAC Address | 16k |
| Maximum 64 bytes packetforwarding rate | 77.4Mpps |
| اتلاف حرارت | 1,648.23Btu/hr |
| Packet Buffer | 3.0MB |
| DDRIII for CPU | 128Mbytes |
| Flash Memory | 16Mbytes |
| منبع تغذیه | 100to 240 VAC 50/60 Hz internal universal power supply |
| حداکثر توان مصرفی | (483.1watts(PoE on (48.9watts(PoE off |
| حداکثر توان PoE | 370W |
| مصرف برق در حالت Standby | 29.5W/100V 27.5W/240V |
| نوع پورت آپلینک | Copper/Gigabit Fiber combo, Gigabit Ethernet, Gigabit Fiber |
اسمارت, تجهیزات شبکه, سوییچ

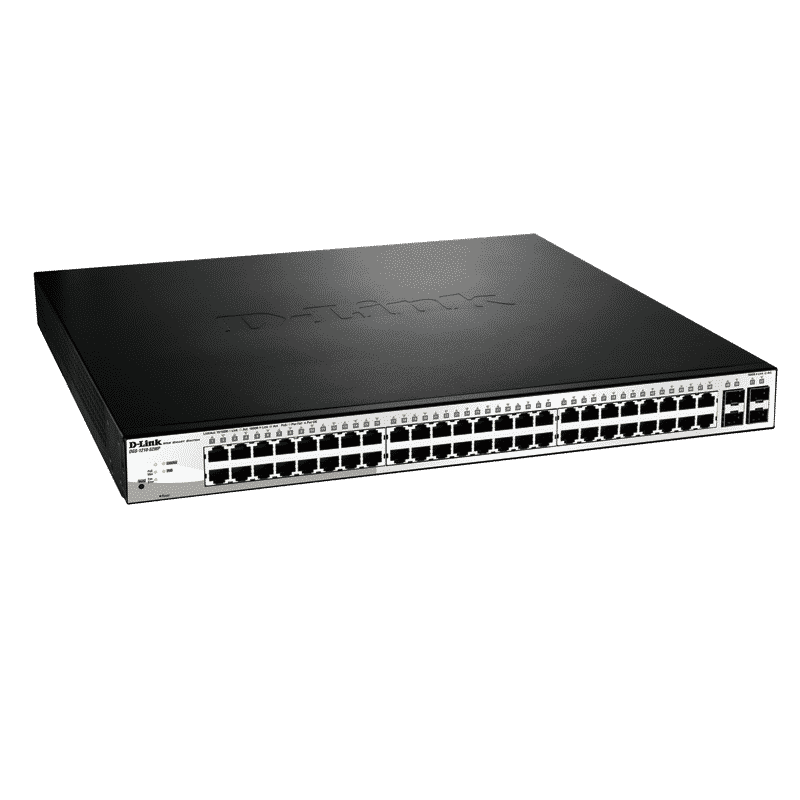

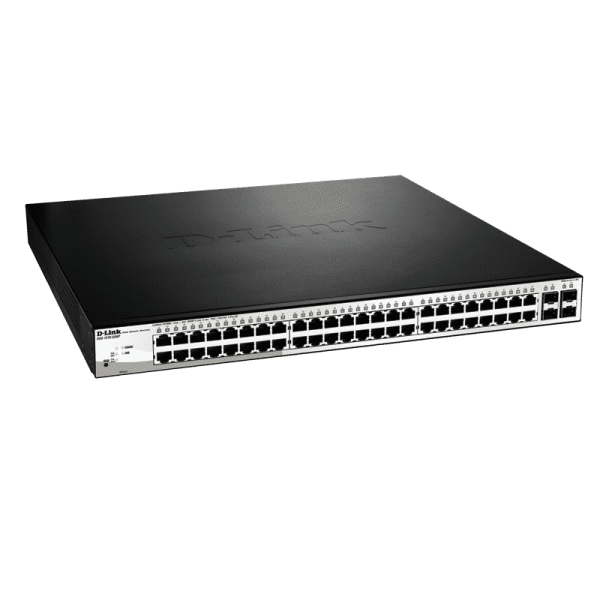

سوییچ PoE هوشمند DGS-1210-52MP دی-لینک
- دارای 48 پورت گیگابیتی PoE شبکه
- دارای 4 پورت SFP
- قابلیت های مدیریتی پیشرفته
- سازگار با پروتکل های IPv6
