| رابط های کاربری | 24SFP + 4 10G SFP |
|---|---|
| امنیت | SSH v1/v2 SSL v1/v2/v3 Port Security Broadcast/Multicast/Unicast Storm Control (IP-MAC-Port Binding (IMPB) Traffic Segmentation D-Link Safeguard Engine L3 Control Packet Filtering NetBIOS/NetBEUI Filtering DHCP Server Screening DHCP Client Filtering ARP Spoofing Prevention BPDU Attack Protection DoS Attack Prevention |
| Virtual Stacking | D-Link Single IP Management Up to 32 units per Virtual Stack |
| ویژگی های لایه 2 ای | Flow Control 802.3x Flow Control HOL Blocking Prevention Jumbo Frames up to 9216 Bytes Spanning Tree Protocols 802.1D STP 802.1w RSTP 802.1s MSTP BPDU Filtering Root Restriction Loopback Detection Link Aggregation Compliant with 802.1AX and 802.3ad Port Mirroring Supports 1 Mirroring group Supports One-to-One, Many-to-One, Flow-based (ACL) Mirroring (Ethernet Ring Protection Switching (ERPS |
| L2 Multicasting | IGMP Snooping IGMP v1/v2 Snooping, v3 awareness Supports 1024 groups Port/Host-based IGMP Snooping Fast Leave Report Suppression IGMP Authentication (Limited IP Multicast (IGMP Filtering MLD Snooping MLD v1, MLD v2 awareness Supports 1024 groups Port/Host-based MLD snooping Fast Leave |
| VLAN | VLAN Group Max. 4094 VLAN Port-based VLAN MAC-based VLAN GVRP Max. 255 dynamic VLANs 802.1v Protocol VLAN 802.1Q Tagged VLAN (Double VLAN (Q-in-Q Port-based Q-in-Q ISM VLAN VLAN Translation VLAN Trunking |
| ویژگی های لایه 3 ای | Max. 1024 ARP entries (IPv6 Neighbor Discovery (ND 16IP interfaces Default Route Static Route |
| QoS | CoS based on Switch Port 802.1p Priority VLAN ID MAC Address Ether Type IPv4/IPv6 address DSCP ToS Protocol Type TCP/UDP Port IPv6 Traffic Class IPv6 Flow Label User Defined Packet Content Bandwidth Control (Port-based (Ingress, Min. Granularity 64 Kbps (Flow-based (Ingress, Min. Granularity 64 Kbps (Egress queue bandwidth control (Min. Granularity 64 Kbps Queue Handling (Strict Priority Queue (SPQ (Weighted Round Robin (WRR SPQ + WRR 8queues per port |
| OAM | Cable Diagnostics 802.3ah Ethernet Link OAM Dying Gasp (802.1ag Connectivity Fault Management (CFM) |
| سیستم خنک کننده | 2x Smart Fan |
| مدیریت | (Web-based GUI (Supports IPv4/v6 (Command Line Interface (CLI (Telnet Server/Client (Supports IPv4 (TFTP/FTP Client (Supports IPv4 ZModem Command Logging ( SNMP v1/v2c/v3 (Supports IPv4 SNMP Traps System Log ( SMTP (IPv4 802.1AB LLDP LLDP-MED (BootP/DHCP Client (Supports IPv4 DHCP Auto-Configuration1 (DHCP Relay (Supports IPv4 DHCP Relay Option 60, 61 and 82 DHCP Client Option 12 PPPoE Circuit-ID Tag Insertion Multiple Image Flash File System CPU Monitoring Memory Monitoring (SNTP (Supports IPv4 Debug Command Password Recovery Password Encryption Ping Traceroute (Microsoft® NLB (Network Load Balancing) Support (Supports IPv4 (Zero Touch Provisioning (ZTP sFlow1 D-Link Network Assistant1 |
| برند | D-link |
| محل استفاده | Rackmount |
| تعداد پورت | 18 تا 28 پورت |
| PoE | None PoE |
| نوع پورت | Gigabit Fiber |
| حفاظت در برابر نوسانات ولتاژ | All Ethernet ports support IEC61000-4-5 6 kV surge protection |
| وزن | 2.10kg |
| پورت کنسول | RJ-45 Console Port |
| MAC Address Update | Up to 512 static MAC entries |
| استانداردها و قابلیت های پورت | IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3ae 10 GbE IEEE 802.3x Flow Control for full-duplex mode, auto-negotiation |
| Full/Half-Duplex | Full/half duplex for 10/100 Mbps and Gigabit speed |
| Media Interface Exchange | Auto or configurable MDI/MDIX |
| ظرفیت سوییچ | 128Gbps |
| Forwarding Method | Store-and-forward |
| جدول MAC Address | Up to 16K entries per device |
| Maximum 64-byte Max.Packet Forwarding Rate | 95.24Mpps |
| سایز | 440mm*210mm*44mm |
| Packet Buffer | 1.5MB per device |
| نشانگر LED | Per Device : Power, Redundant Power , console, ,fan error Per Port : link, active, speed |
| MTBF | 574,974hours |
| اتلاف حرارت | 157.94BTU/h |
| منبع تغذیه | AC Input: 100 to 240 VAC 50/60 Hz |
| حداکثر توان مصرفی | 53.4W |
| مصرف برق در حالت Standbye | 13.0W/100V 13.5W/240V |
| نوع پورت آپلینک | SFP 10 Gigabit |
اسمارت, تجهیزات شبکه, سوییچ

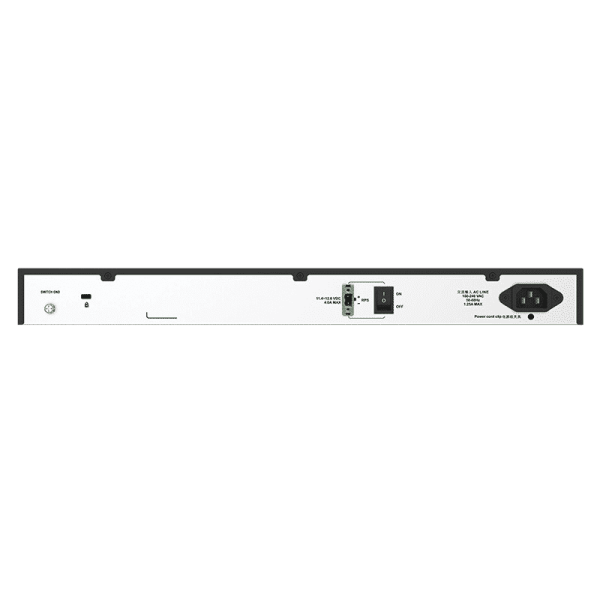

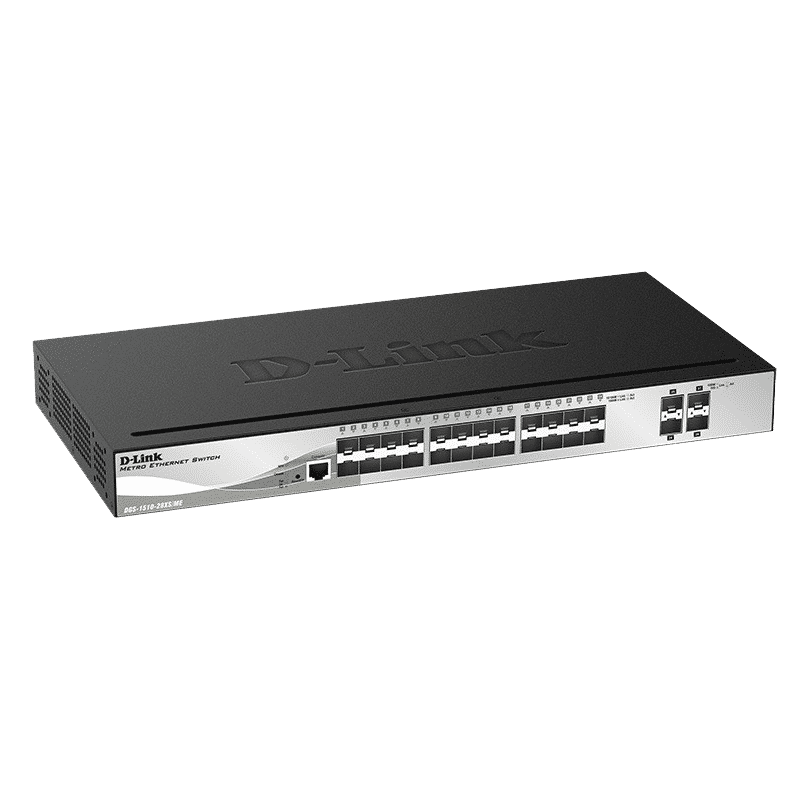

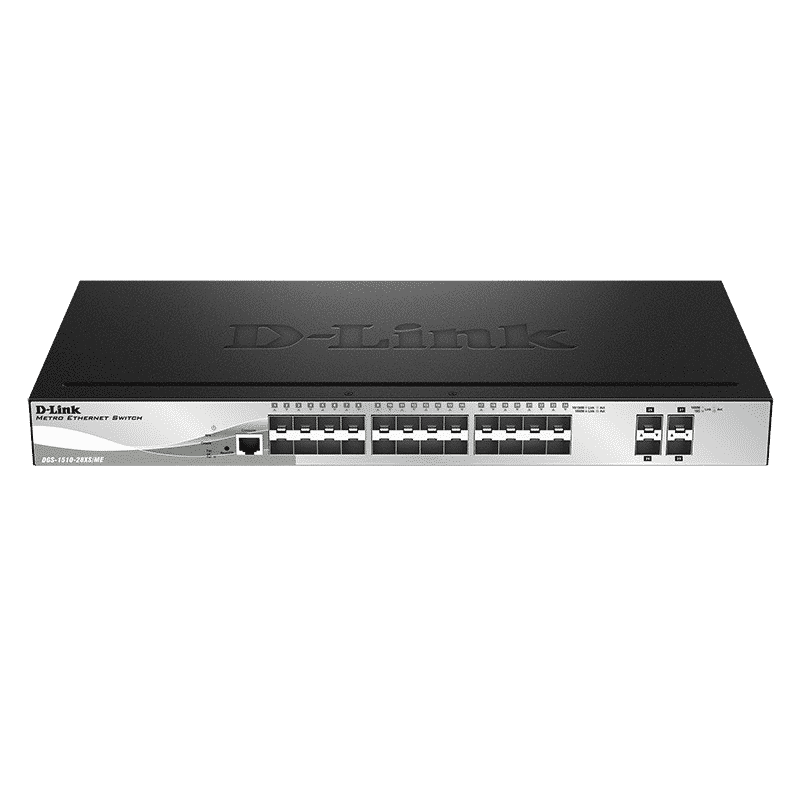

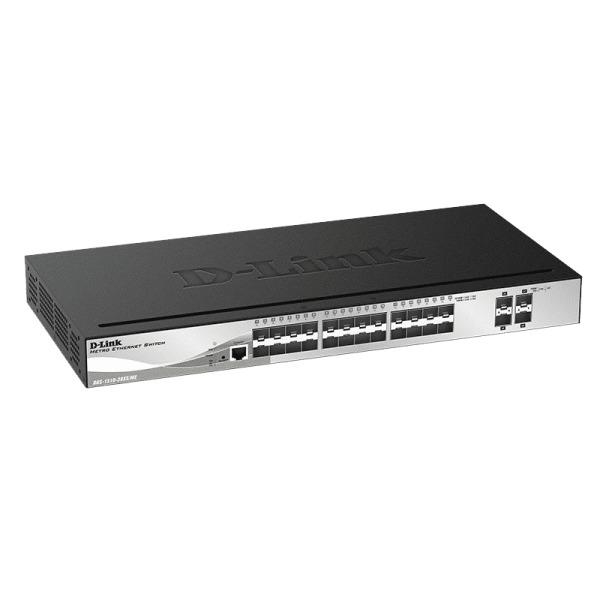

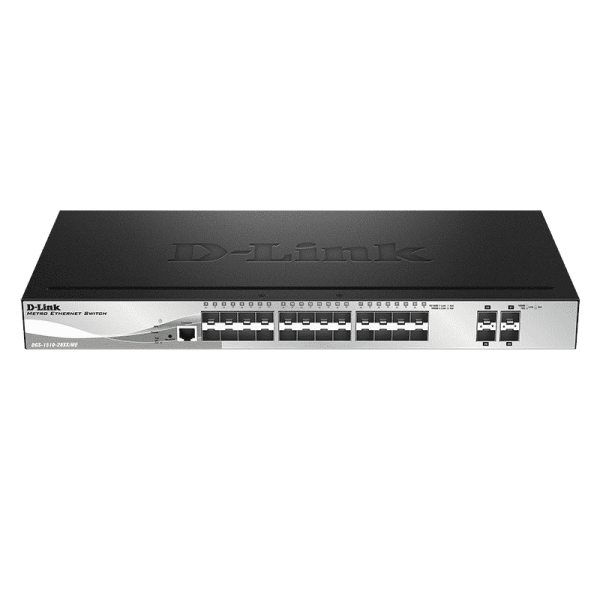

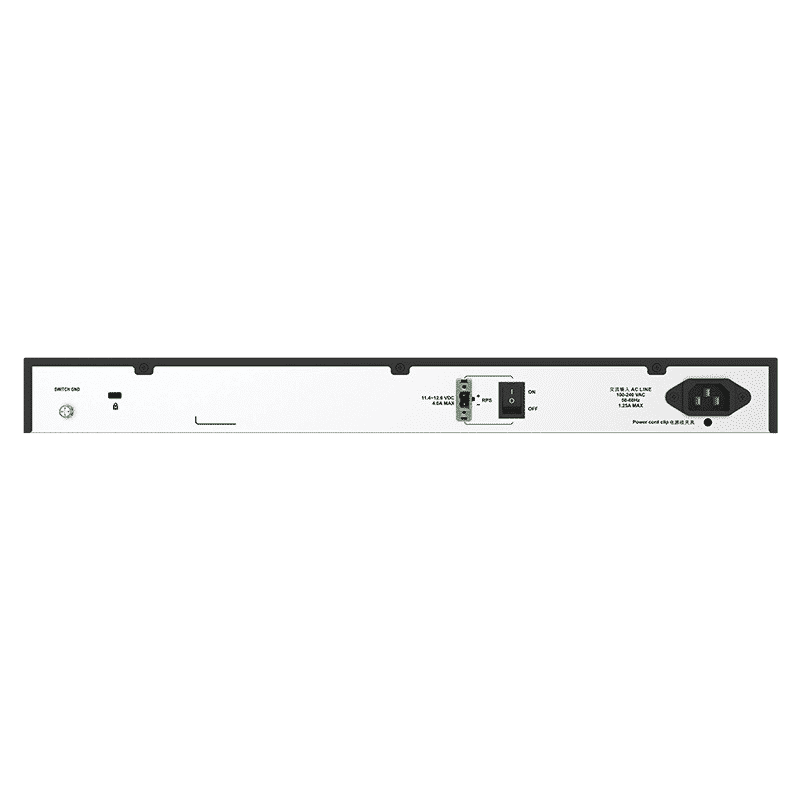

سوییچ Stackable هوشمند DGS-1510-28XS دی-لینک
- پهنای باند بالای Uplink ها، برطرف شدن bottlenecks ها، فراهم کردن ارتباطات با حداقل تاخیر برای سرورها و پایگاه های ذخیره سازی
- یک رابط تحت وب ،پشتیبانی از SNMP و یک رابط قدرتمند Command Line ، مجموعه ای کامل از ویژگی های مدیریتی را فراهم میکند
- پشتیبانی از Auto Surveillance VLAN و Auto Voice VLAN
- پشتیبانی از D-Link Green
